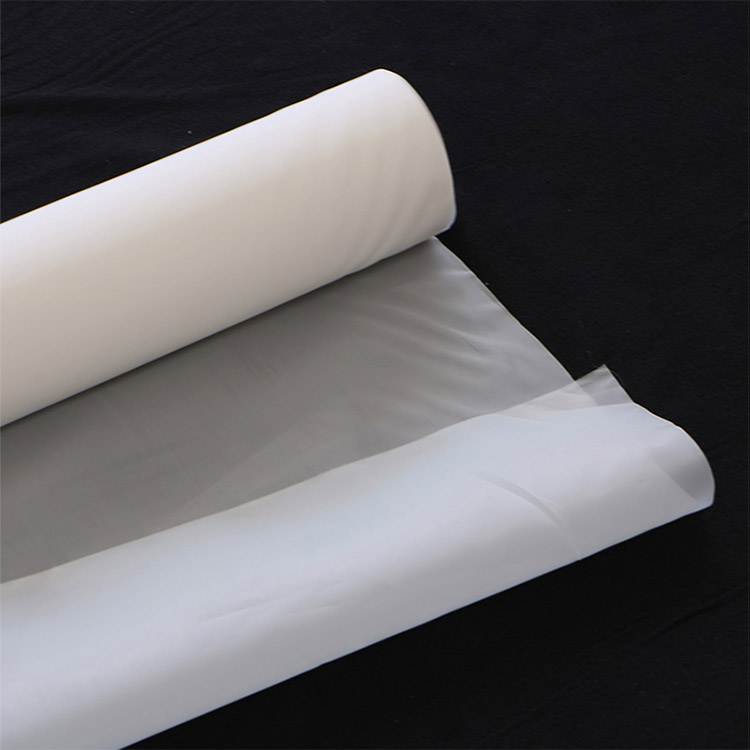

Polyester filter mesh

The monofilament polyester filter mesh of micron openings from 17 micron to 1000 micron. Polyester mesh is good for biological and resistance to acids, oxidizing agents, organic solvents, and UV resistance. Polyester mesh is also known for having a st…

CONTACT NOW CONTACT NOW

Product Details

Common applications include liquid filter bags, paint filtering, food processing, swimming pool filtration and other applications.

Type	Mesh/inch	Weave	Aperture(um)	Opening(%）	Thread Diameter (um)	Weight(g/㎡）
08250	20	1/1	1000	62	250	117
12250	30	1/1	590	49	250	175
13140	33	1/1	640	69	140	56
16200	40	1/1	430	46	200	149
18170	45	1/1	390	48	170	120
19180	50	1/1	355	49	180	137
24140	60	1/1	280	44	140	110
24150	60	1/1	270	41	150	126
24100	60	1/1	320	57	100	56
29120	75	1/1	230	57	100	56
32100	80	1/1	216	46	100	75
32064	80	1/1	250	62	64	31
36090	90	1/1	190	45	90	68
39055	100	1/1	200	62	55	30
39064	100	1/1	190	56	64	38
39070	100	1/1	185	53	70	46
43080	110	1/1	150	42	80	65
48055	120	1/1	153	52	55	36
48064	120	1/1	145	47	64	47
48070	120	1/1	140	44	70	56
55055	140	1/1	130	51	55	40
55064	140	1/1	120	44	64	53
64055	160	1/1	100	40	55	48
64064	160	1/1	90	32	64	62
72048	180	1/1	91	42	48	39
72055	180	1/1	84	35	55	53
77048	195	1/1	82	40	48	42
77055	195	1/1	75	33	55	57
80048	200	1/1	77	37	48	44
90048	230	1/1	62	32	48	50
10040	250	1/1	58	33	40	37
11040	280	1/1	49	29	40	40
12031	300	1/1	50	35	31	27
12034	300	1/1	46	30	34	35
14031	350	1/1	39	29	31	30
14034	350	1/1	35	23	34	39
15031	380	1/1	34	26	31	32
15034	380	1/1	30	20	34	42
16527	420	1/1	32	28	27	29
16531	420	1/1	27	20	31	37
18127	460	1/1	25	20	27	31
20031	500	3/3	19	14	31	45
55080	460/120	1/1			55/80
55100	460/110	1/1			55/100
Note: The error between theoretical thickness and actual thickness is ±5%. The hole size, opening area are theoretical data and may have slight errors from the actual data.
