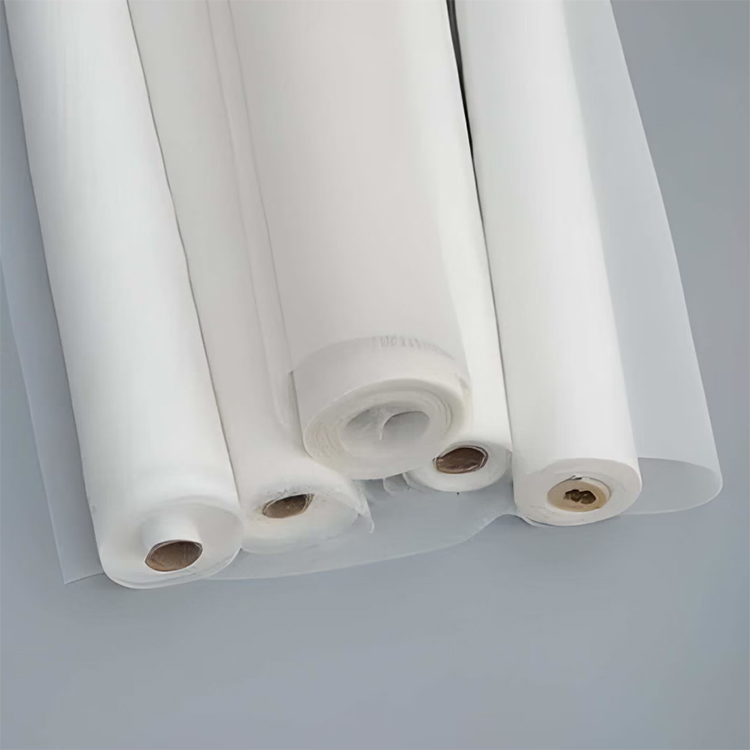

Nylon filter mesh

TUYA offers a wide range of nylon filter mesh of micron openings from 5 micron to 1950 micron. Nylon mesh is among the most popular and economical filter mesh and are found in many industrial applications. Nylon is known for its high strength and biol…

CONTACT NOW CONTACT NOW

Product Details

Common applications include liquid filter bags, sifting screens, aquatic screens, food processing, molded filters for automotive and other industries.

型号(Type)	规格（mesh/cm）	Mesh/inch	线径（um）	网孔（um）	厚度（um）	克重（g/㎡）
NL4/1950	4	10	550	1950	1100	307
NL5/1500	5	13	500	1500	1000	318
NL6/1267	6	15	400	1267	800	244
NL7/1079	7	18	350	1079	700	218
NL8/900	8	20	350	900	700	249
NL9/861	9	23	250	861	500	143
NL9/811	9	23	300	811	600	206
NL10/750	10	25	250	750	500	159
NL10/700	10	25	300	700	600	229
NL12/583	12	30	250	583	500	191
NL12/533	12	30	300	533	600	274
NL14/514	14	36	200	514	340	142
NL16/425	16	40	200	425	340	160
NL20/350	20	50	150	350	255	113
NL20/300	20	50	200	300	340	200
NL24/297	24	60	120	297	204	86
NL24/267	24	60	150	267	255	135
NL28/237	28	70	120	237	204	101
NL30/213	30	76	120	213	204	110
NL32/213	32	80	100	213	170	80
NL36/178	36	90	100	178	170	90
NL40/150	40	100	100	150	170	100
NL43/153	43	110	80	153	136	70
NL48/128	48	120	80	128	136	77
NL56/119	56	140	60	119	102	50
NL64/96	64	160	60	96	102	58
NL72/89	72	180	50	89	85	45
NL80/75	80	200	50	75	85	50
NL100/57	100	250	43	57	73	46
NL110/48	110	280	43	48	73	52
NL120/48	120	300	35	48	60	37
NL120/40	120	300	43	40	73	55
NL130/42	130	330	35	42	60	40
NL130/34	130	330	43	34	73	61
NL140/36	140	350	35	36	60	43
NL157/25	157	400	43	25	73	74
NL180/20	180	450	39	20	66	68
NL200/10	200	500	39	10~15	66	76
NL240/5	240	600	39	5	66	91
