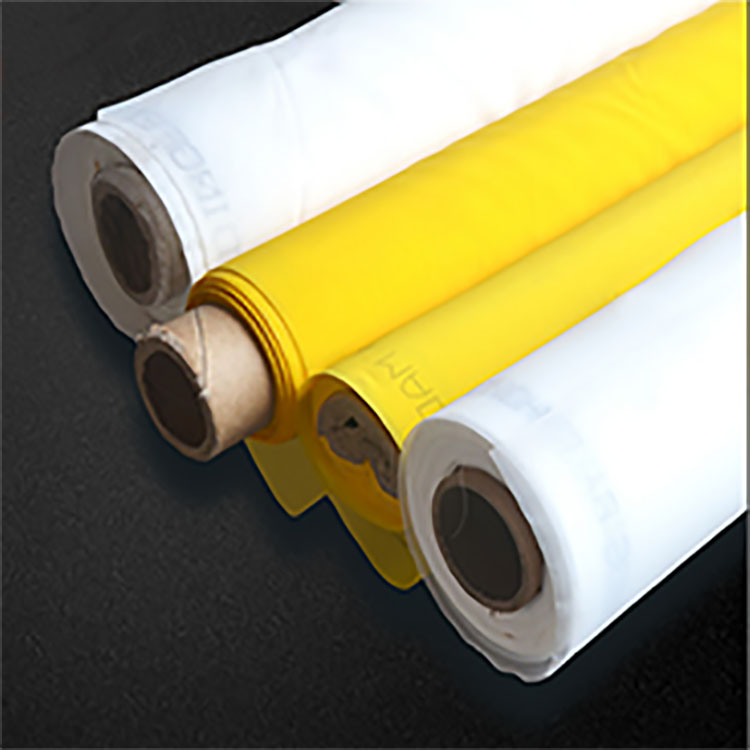

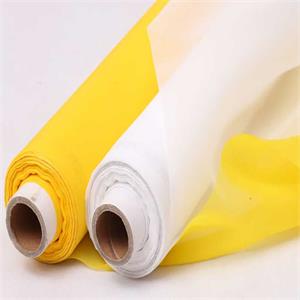

Polyester screen printing mesh

Polyester screen printing mesh/bolting cloth, was made of monofilament polyesrer yarn, it has high tension and low elongation, with excellent tear resistance and dimensional stability. Different mesh counts mesh from 6T(15 mesh) to 165T(420 mesh) can …

CONTACT NOW CONTACT NOW

Product Details

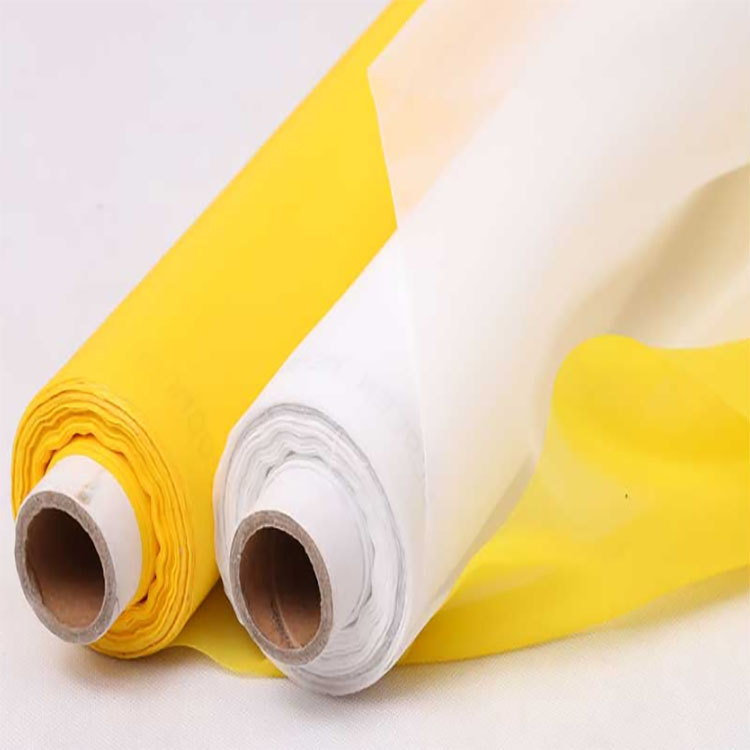

Polyester screen printing mesh

TYPE	MESH COUNT		THREAD DIAMETER	APERTURE	OPENING AREA	THICKNESS	INK THROUGH VOLUME THEORETICALLY	TENSILE STRENGTH
	Mesh/cm	Mesh/inch	μm	μm	%	μm	cm³/㎡	N/CM
6T-400	6	15	400	1300	65	780-810	560	110
10T-250	10	25	250	700	49	508-518	355	85
12T-140	12	30	140	685	68	273-275	189	65
15T-250	15	38	250	467	49	489-501	213	83
24T-100	24	60	100	316	57	188-195	109	49
24T-120	24	60	120	303	51	230-240	104	51
30T-120	30	75	120	213	41	235-245	102	52
32T-64	32	80	64	236	60	105-110	68	31
32T-100	32	80	100	212	46	145-155	69	49
36T-90	36	90	90	185	45	155-165	65	49
36T-100	36	90	100	182	41	175-185	60	51
39T-55	39	100	55	195	56	88-96	55	24
39T-80	39	100	80	176	48	148-153	73	31
43T-80	43	110	80	147	41	125-131	53	31
47T-55	47	120	55	152	51	88-96	48	39
48T-70	48	120	70	135	41	108-120	46	30
53T-55	53	135	55	128	48	88-96	45	29
54T-64	54	137	64	115	39	95-105	39	30
59T-55	59	150	55	114	45	85-90	38	30
62T-64	62	160	64	105	42	98-107	33	31
64T-64	64	165	64	88	30	95-105	30.7	31
72T-48	72	180	48	90	36	75-84	33.1	28
72T-55	72	180	55	80	33	89-95	31	29
77T-48	77	195	48	81	34	80-85	29	28
77T-55	77	195	55	75	28	86-92	26.6	29
80T-48	80	200	48	72	33	75-84	28.7	27
90T-48	90	230	48	56	25	77-85	23.5	25
100T-40	100	250	40	58	37	66-73	21.3	28.5
110T-40	110	280	40	52	33	78-85	20.5	29.6
120T-34	120	305	34	45	30.5	52-57	18.4	30.5
140T-31	140	355	31	34	25	48-53	13	29
140T-34	140	355	34	31	19.5	56-62	14.4	31
150T-31	150	380	31	36	29	43-47	13.1	30.5
150T-34	150	380	34	30	20.5	56-62	14.9	30.5
165T-31	165	420	31	31	22.5	52-58	12.5	28.9
